Are HPMC capsules better than gelatin?

The Short Answer: Yes, for Stability and Versatility

For the majority of modern supplements and pharmaceutical applications, HPMC capsules are technically superior to traditional gelatin capsules. They solve the most common stability issues associated with gelatin, such as brittleness in low humidity and cross-linking reactions. Furthermore, because HPMC is plant-based, it instantly satisfies the dietary requirements of the widest possible consumer base, including vegetarians and those observing Halal or Kosher laws.

However, "better" is contextual. If the primary priority is low manufacturing cost or high oxygen barrier properties for liquid fills, gelatin remains a highly effective and competitive choice.

Moisture Content and Hygroscopic Ingredients

The most significant technical advantage of HPMC over gelatin is water content. Gelatin capsules rely on water to maintain their flexibility. Standard gelatin capsules contain between 13% and 16% moisture. If the relative humidity drops or if the internal fill material is hygroscopic (water-absorbing), the gelatin shell loses water and becomes brittle, leading to breakage.

In contrast, HPMC capsules have a very low moisture content, typically ranging from 3% to 8%. This makes them the ideal choice for moisture-sensitive ingredients, such as probiotics or herbal extracts that readily absorb water. HPMC shells will not donate water to the ingredients, nor will they become brittle in low-humidity storage conditions.

Chemical Stability and Cross-Linking Risks

Gelatin is a protein derived from animal collagen. Being a protein, it contains amino groups that can react with certain chemical groups, particularly aldehydes and ketones. This reaction is known as cross-linking. When cross-linking occurs, the capsule shell becomes insoluble, meaning it will not dissolve properly in the stomach, potentially preventing the drug from being absorbed.

HPMC (Hydroxypropyl Methylcellulose) is a cellulose ether derived from pine or cotton. It is chemically inert. This means it does not interact with the fill material, ensuring consistent dissolution rates regardless of storage time or exposure to heat and humidity.

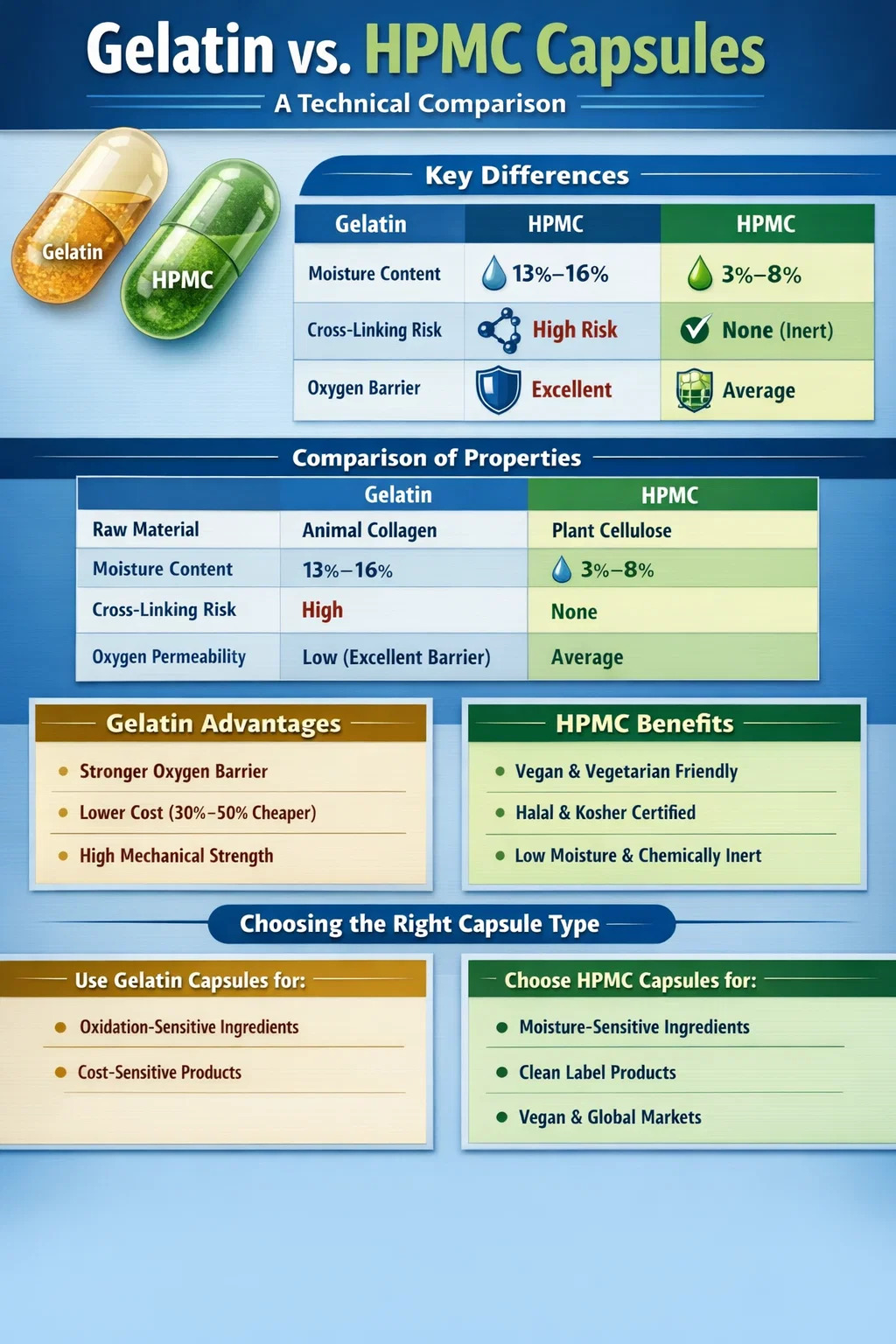

Technical Specification Comparison

The following data highlights the distinct physical properties that differentiate the two capsule types.

Where Gelatin Still Holds the Advantage

While HPMC is better for versatility, gelatin is not obsolete. It retains specific advantages that make it the preferred choice for certain manufacturers:

• Oxygen Barrier: Gelatin provides a stronger barrier against oxygen transmission than HPMC. For ingredients that are highly sensitive to oxidation, gelatin may offer better protection without additional antioxidants.
• Cost Efficiency: Manufacturing gelatin capsules is a mature, high-volume industry. Generally, gelatin capsules are 30% to 50% cheaper to produce than HPMC capsules, making them the standard for generic drugs and budget-friendly supplements.
• Mechanical Strength: While HPMC is flexible, gelatin is physically robust and withstands the high mechanical stress of high-speed filling machines exceptionally well.

Consumer Preference and Market Access

From a marketing perspective, HPMC capsules provide a clear competitive edge. Because they contain no animal by-products, they automatically qualify for:

• Vegetarian and Vegan certifications.
• Halal and Kosher certifications (without the complex supply chain verification required for bovine gelatin).
• Clean Label initiatives, which appeal to health-conscious consumers looking for "natural" or "plant-derived" products.

This universality means a brand can use a single capsule formulation to serve a global market, simplifying inventory and regulatory compliance.
